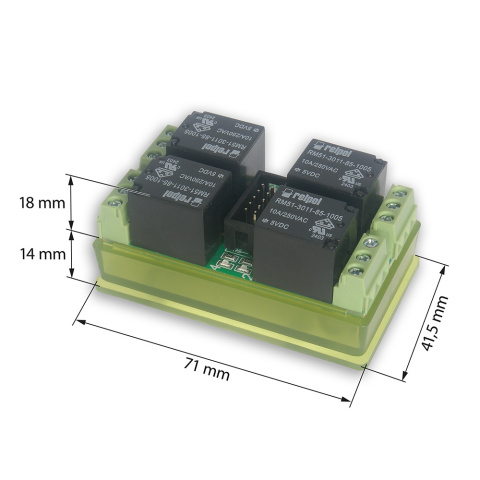

Universal relay board 4×10A

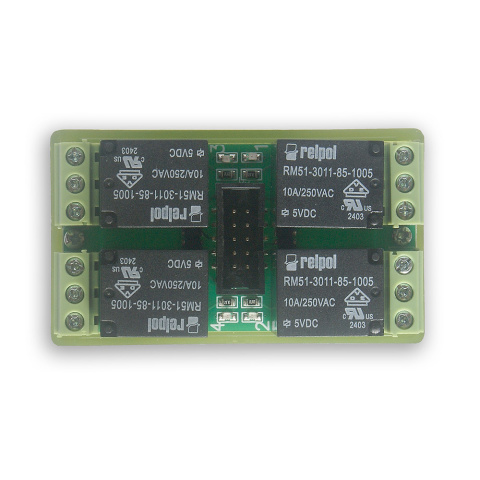

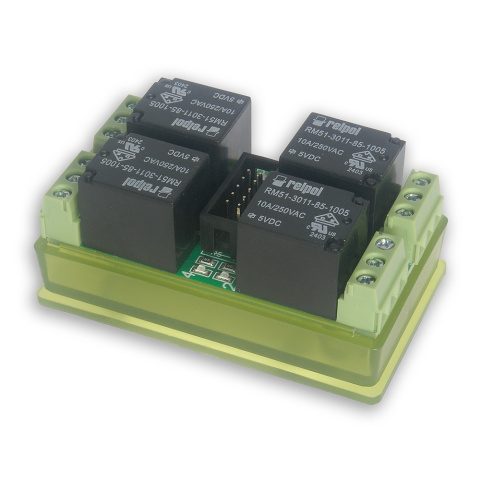

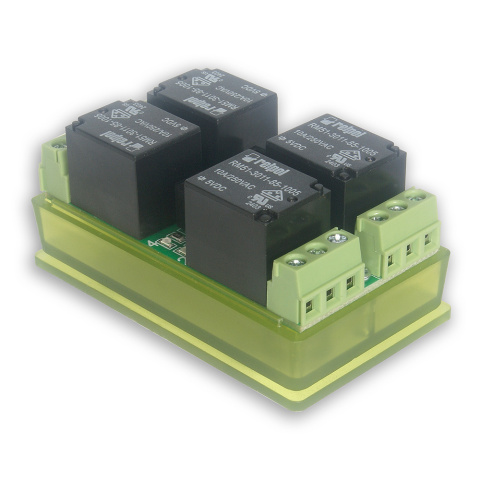

Board containing 4 relays. When connected to the LAN controller: LK3.5+ (including LK3.9), LK4, LK3.0, LK2.5, it allows you to turn on, turn off and reset each relay independently. Their status is indicated by LEDs. The main application is to control 4 electrical devices.
79.98
| Shipping within | 24 hours from the moment of positive payment authorization |
| Shipping price | Depends on the delivery location |
| Availability |
High availability
|
| Leave your phone |
Board containing 4 relays. When connected to the LAN controller: LK3.5+ (including LK3.9), LK4, LK3.0, LK2.5, it allows you to turn on, turn off and reset each relay independently. Their status is indicated by LEDs. The main application is to control 4 electrical devices.
The high-quality relays used by the Polish company Relpol are characterized by high resistance to surges. The special design of the contacts, which removes metal oxides with each switching, additionally extends the time of failure-free operation.

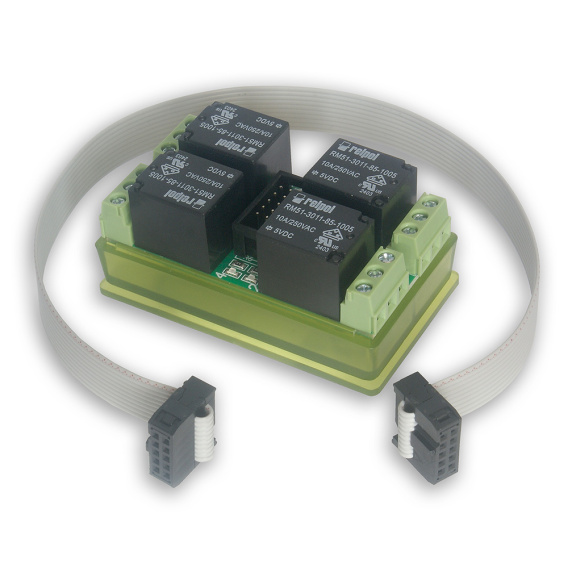

The set includes a 30 cm control cable with 2 × IDC10 plugs + a housing with a holder for mounting on a DIN rail.
Technical specifications
| Compatibility | LK4, LK3.5+ (including LK3.9), LK3.0, LK2.5 |
|---|---|
| Input | IDC10 connector (tape) for connecting LK4 |
| Number of relays | 4 |

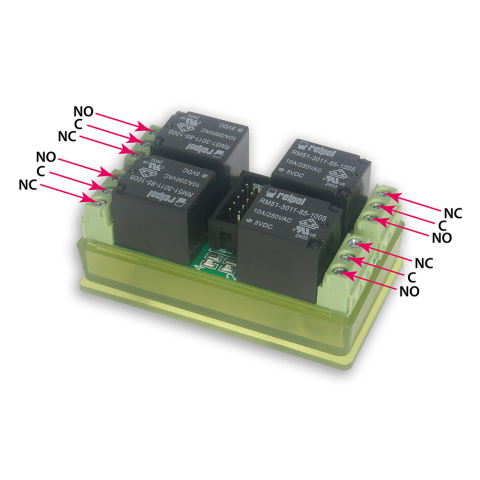

| Relay outputs | NO, C, NC |
| Contact configuration | SPDT |
| Contact material | AgSnO2 |
| Rated load current | 10 A / 250 V AC (AC-1) 20 A / 125 V AC (AC-1) 10 A / 30 V DC (DC-1) AC-1/DC-1: non-inductive or low inductive loads, resistance furnaces |
| Contact resistance | < 100 mΩ |
| Connector wire cross-section | 1.5 mm |
| DIN rail mounting | YES |
Safety Information
Important Safety Information for the Relay Module
Reading the User Manual:
Before use, carefully read the Quick Start Guide for LK devices and strictly follow the instructions for connecting the relay module.
Manufacturer's Liability:
The manufacturer is not responsible for the consequences of failing to follow the instructions in the Quick Start Guide and the safety notes below, nor for using the product for purposes other than its intended use as an IoT device.
Protection against unauthorized access:
The device should be installed and used in a location inaccessible to unauthorized persons, especially children.
Weatherproofing:
The device must not be exposed to direct weather conditions. For outdoor installations, ensure a suitable, hermetic enclosure in accordance with the manufacturer's recommendations. The operating temperature range is specified in the LK device user manual.
Power Supply and Electrical Safety:
Connecting the module to a power supply or connecting the module outputs to voltages or currents that do not comply with the specifications is prohibited. If relay outputs are used with voltages hazardous to health or life, but within the permissible parameters specified in the manual, the electrical installation must be carried out in accordance with applicable standards and protected against accidental contact in a suitable enclosure. Such installation should be performed by a person qualified to operate electrical equipment with a certificate of competence.
Technical Inspection:
Before using the relay module, inspect its technical condition and the condition of the ribbon cable connecting it to the mains. Using damaged devices or power cable connections is prohibited, as it may pose a risk of electric shock or fire.
Modifications and Repairs:
Do not attempt to modify, alter, or repair the relay module yourself. If repairs are necessary, contact an authorized service center, dealer, or manufacturer. Devices that cannot be repaired should be disposed of as electronic waste.
No Hazardous Substances:
The device does not contain hazardous substances or batteries.
